Venus 12-14-15 m

venus

STANDARD FEATURES

Varnished steel frame;

Closing the unit with 2 hydraulic cylinders φ50 / 25mm in shape X;

Lifting the device and ground leveling operations are mechanical with the possibility of upgrading the hydraulic cylinder;

Nozzles are distributed on polypropylene pipes Ø.20x2.8mm, nominal pressure 20 bar, at a uniform distance of 500mm, anti-drip system;

Plastic resin nozzles GEOLINE type AZ 0.2, 0.3, 0.4, for working pressure 2 - 4 bar, angle resin 80° – 110;

Reinforced high pressure hoses 20bar, d.10 / D.15mm, connect welded polypropylene joint and plugs,

Opening diameter Ø.13mm for hanging device 640 ÷ 660mm;

OPTIONAL FEATURES

Tri-jet nozzles with Resin nozzles type AZ 02 yellow, 03 blue and 04 red (Tecomec) reccomended pressure 2 to 7.5 bar, with accessories 110º;

Air nozzles to 20 km/h type AD-IA - 02 yellow, 03 blue and 04 red (Tecomec), reccomended pressure 2 to 7.5 bar, with accessories 110º;

Resin nozzles type AZ - 0.3 blue, 0.4 red (Tecomec) for working pressure from 3 to 4 bar, angle resin 110 °;

Stainless steel pipes ø21,3 * 1,6 instead of polyethylene;

Lifting the device using a hydraulic diaphragms for the VENUS and VERTO boom.

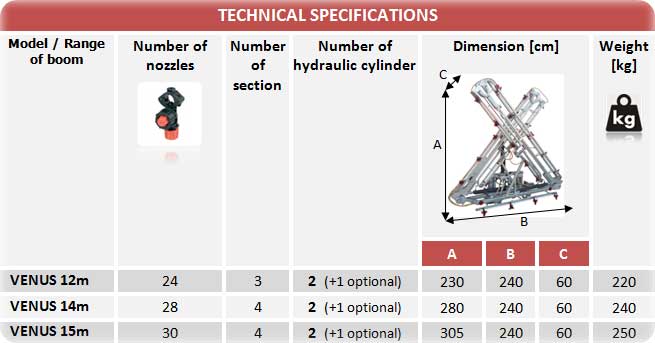

VENUS_tab_srb1
