Manda 200-300L

Spraying group ideal for medium and large-sized farms. The frame is varnished and made of metal pipes. The tank consists of two parts: the main tank and hand-washing tank. Equipped with "BETA" boom, built with steel tubes and high resistant plastic resin nozzles-holder pipes, is mounted on sliding rails and adjustable at any height, single nozzle-holders are with check-valve. The filter has the possibility of self-filling from natural sources (wells, reservoirs for water accumulation, sources, etc.). The homogenization of the preparation is accomplished by a hydro-injector. The bottom hinge is realized in three points with a Ø22 / 28 mm sleeve. There is also the possibility of installing prochromic tubes, pressure regulators with multiple outputs and other equipment specified in the optional equipment.

sprayers_300_02

STANDARD FEATURES

Two tanks: polyethylene with filter and cover 200/300L and hand-washing tank 15L with faucet;

Total emptying system;

Varnished steel frame;

The bottom hinge is realized with a Ø22 / 28 mm sleeve;

Three ways pressure regulator “Start 06 – Tecomec - Italy”;

Dal Degan DL 260 NP pump (2 diaphragms, flow 60 L / minmaximum pressure 20 bar);

Filter (50mesh=300µm) GEOLINE with self-filling possibility;

Hydraulic injector TECOMEC with nozzle Ø1,25mm;

Plastic resin nozzles GEOLINE type AZ 0.2 for working pressure 3 - 4 bar, angle resin 110°;

OPTIONAL FEATURES

Liquid filling kit with joint Φ 30mm (5 m hose + filter D.40);

Cardan L=800mm Φ 22x54mm, with PVC plastic protection;

Surcharge for powder mixer on filter tank;

Hydraulic injector (mixer + injector);

Tank rinsing - a shower;

Surcharge for mechanical pressure regulator with 5 ways "Start 06";

Surcharge for 4 ways mechanical pressure regulator "Basic 206" with the possibility of setting pressure in every sectin individually;

Surcharge for 5 ways mechanical pressure regulator "Basic 206" with the possibility of setting pressure in every sectin individually;

Red warning kit;

Manometer Φ 100mm;

High pressure handle lance 60 cm;

Device lever;

Mechanical boom leveling (ground setting);

Air nozzles to 20 km/h type AD-IA - 02 yellow (Tecomec), reccomended pressure 2 to 7.5 bar, with accessories 110º;

Handle lance 60 cm, made of stainless steel, contains ceramic nozzle, effective range up to 7m;

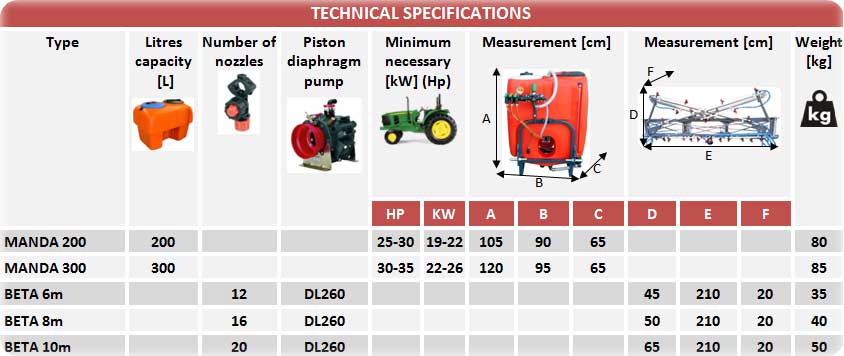

p1
