Alesio 70 L

Alesio trolleys are ideal for spraying vineyards, orchards, greenhouses, and others where access to larger machines is not possible. The chassis is painted (car paint), and made of bent metal pipes. The tank is 70 L. Includes a top cover with thread, a sieve and a full drain plug. The handles are removed to reduce the size during transport and storage. The trolley drive is realized by a benzine or electric motor that running the pump diaphragm. Optionally, a reel, a high pressure hose (20 bar) of a maximum length of 100 m, and a lance for applying the preparation can be added.

alesio-70_01

STANDARD FEATURES

OPTIONAL FEATURES

Polyethylene tank 70 L;

One rubber wheel;

Chassis (metal construction) - painted (car paint);

Engine pump: four-stroke engine MCC, flow 18.50 L/min, maximum pressure 20 bar) intended for electric and gasoline engines.

Metalna motalica za crevo Ø10mm do 40m/100m;
Iron hose reel Ø10mm up to 40m/100m;
Crevo ojačano, visokog pritiska - 20 bara, dužine po zahtevu kupca od 1 do 100m;
20 bar hose (roll of 100 m);
Rasprskivač sa ručicom i navrtkom za podešavanje protoka, dužine 60 cm, izrađen od prohromske cevi, sadrži keramičku diznu, efektivnog dometa do 7m;
Handle lance 60 cm, made of stainless steel, contains ceramic nozzle, effective range up to 7m;
Rasprskivač sa navrtkom za podešavanje protoka tečnosti, dužine 60 cm, izrađen od prohromske cevi, sadrži keramičku diznu, efektivnog dometa do 7m;
Lever lance 60 cm, made of stainless steel, contains ceramic nozzle, effective range up to 7m;
Rasprskivač sa ručicom i dva držača, dužine 60 cm, izrađen od prohromske cevi, sadrži keramičku diznu, efektivnog dometa do 7m;
Handle lance 60 cm two holders made of stainless steel, contains ceramic nozzle, effective range up to 7m;
Previous
Next

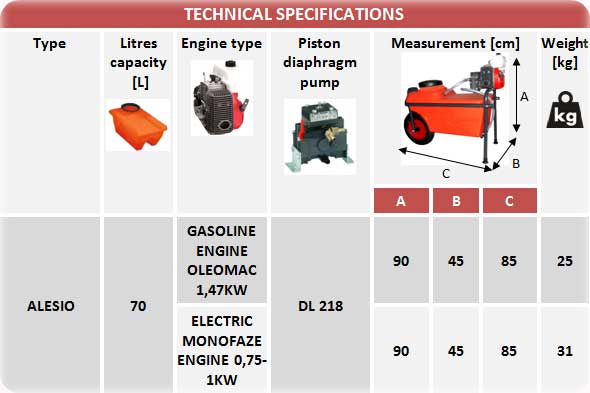

tabela_alesio-70_srb
